Model No.: 48V 60V 72V 100/200/300/400Ah
Payment Type: L/C,T/T,Paypal

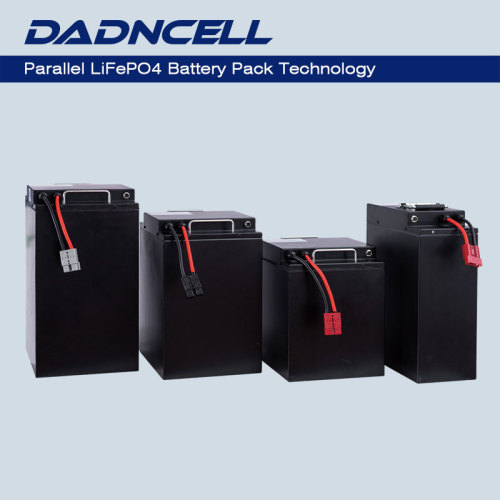

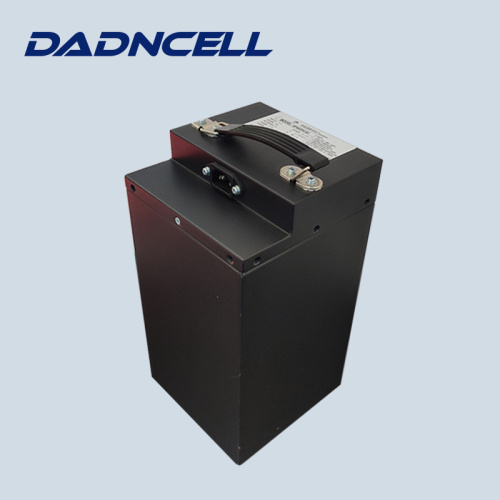

12V 24V 48V 60V 72V Factory Customized LFP BMS Battery Pack
100Ah 200Ah 300Ah 400Ah LiFePO4 Battery Pack
Product Introduction

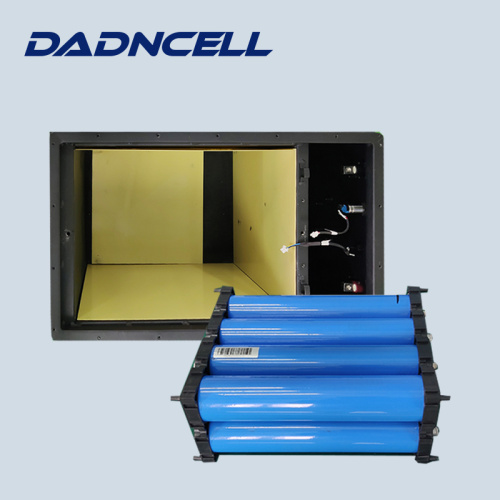

DADNCELL battery pack adopts large cylindrical lithium iron phosphate battery (diameter 60mm), which has better safety performance and longer service life (>3000 times), which raises the specific energy of the battery to a whole new level. The PACK is equipped with a BMS centralized monitoring module, with multiple communication modes to realize remote management, and can communicate and remotely control through the remote central monitoring center. Supports the parallel use of multiple battery packs (10 parallel 520Ah), flexible configuration, meets the requirements of distributed installation, and the system output power and backup time are flexibly adjustable.
The main 12/24/48/60/72V 52/104/208Ah series power products are currently widely used in electric forklifts, electric four-wheelers, tricycles, sightseeing vehicles, storage vehicles, ships, energy storage power supplies, emergency power supplies, etc. field.
Product parameter
Project | 12V Series | 24V Series | 48V Series | 60V Series | 72V Series |
12.8V208Ah | 25.6V104Ah | 51.2V52Ah | 64V52Ah | 76.8V52Ah | |
Nominal voltage (V) | 12.8V | 25.6V | 51.2V | 64V | 76.8V |
Nominal capacity (Ah) | 204Ah | 102Ah | 52Ah | 52Ah | 52Ah |
Charging voltage (V) | 14.6V | 29.2V | 58.4V | 73V | 87.6V |
Charging current (A) | 30A | 30A | 30A | 30A | 30A |
Discharge cut-off voltage | 10V | 20V | 40V | 50V | 60V |
Discharge current | 100A | 80A | 60A | 60A | 60A |
Short circuit protection | Short circuit protection Automatic recovery after disconnecting the load | ||||
Charging temperature | 0℃~55℃ | ||||
The discharge temperature | -10℃~65℃ | ||||
Storage temperature | -20℃~+60℃ | ||||
Working relative humidity | ≤95%(45℃±2℃) | ||||
Relative humidity of storage and transportation | ≤95%(45℃±2℃) | ||||
Cycle life | ≥3000 | ||||
Size (mm) | (390×143×270)±2 | (390×143×270)±2 | (300×227×270)±2 | (365×227×270)±2 | (430×227×270)±2 |
Weight (KG) | 20±0.2 | 20±0.2 | 22±0.2 | 27±0.2 | 31±0.2 |
Communication methods | UART | UART | UART | UART | UART |
Huachuang Times is an advanced battery technology company in China, focusing on R&D and production in the field of batteries, insisting on taking science and technology as the forerunner, focusing on products and focusing on customers.
The company has established a technology center and a post-doctoral scientific research station, and has established a number of new energy research centers in cooperation with national key universities and the Institute of Chinese Academy of Sciences. The scientific research and innovation mechanism is mature and complete. As a company with strong scientific and technological strength in the battery field in China, it will be committed to Users provide power products and services with brand-new technology and experience.
