Model No.: 48/60/72V
Payment Type: L/C,T/T,Paypal

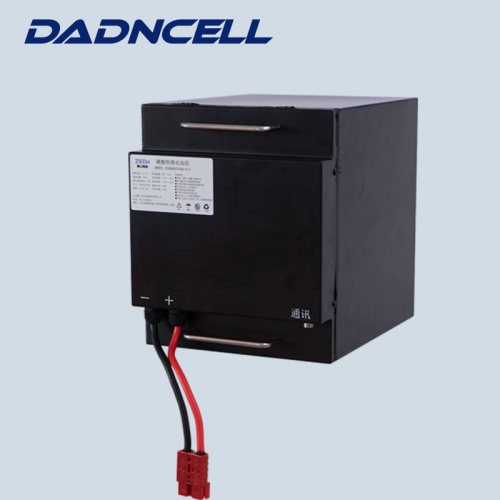

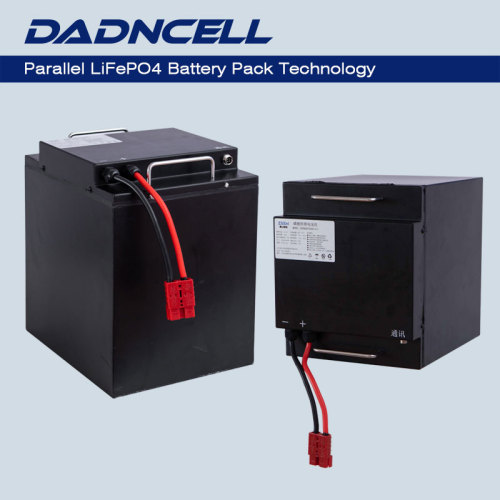

48V 60V 72V High Capacity Modular LFP Battery Pack 100/200/400Ah
Long Service Life LiFePO4 Battery Charged More Than 3000 Times
Product Introduction
DADNCELL’s main 12/24/48/60/72V 52/104/208Ah series battery pack products use lithium iron phosphate battery cells (60mm direct large cylinder), equipped with a BMS centralized monitoring module, and support 10 battery modules in parallel It can be used interchangeably with lead-acid battery packs of the same voltage when the number of charging cycles is more than 3000 times. It has multiple communication modes to realize remote management. At present, it is widely used in electric four-wheeled vehicles, tricycles, sightseeing vehicles, storage vehicles, ships, energy storage power supplies, emergency power supplies and other fields.
Product parameter
Project | 12V Series | 24V Series | 48V Series | 60V Series | 72V Series |
12.8V208Ah | 25.6V104Ah | 51.2V52Ah | 64V52Ah | 76.8V52Ah | |
Nominal voltage (V) | 12.8V | 25.6V | 51.2V | 64V | 76.8V |
Nominal capacity (Ah) | 204Ah | 102Ah | 52Ah | 52Ah | 52Ah |
Charging voltage (V) | 14.6V | 29.2V | 58.4V | 73V | 87.6V |
Charging current (A) | 30A | 30A | 30A | 30A | 30A |
Discharge cut-off voltage | 10V | 20V | 40V | 50V | 60V |
Discharge current | 100A | 80A | 60A | 60A | 60A |
Short circuit protection | Short circuit protection Automatic recovery after disconnecting the load | ||||
Charging temperature | 0℃~55℃ | ||||
The discharge temperature | -10℃~65℃ | ||||
Storage temperature | -20℃~+60℃ | ||||
Working relative humidity | ≤95%(45℃±2℃) | ||||
Relative humidity of storage and transportation | ≤95%(45℃±2℃) | ||||
Cycle life | ≥3000 | ||||
Size (mm) | (390×143×270)±2 | (390×143×270)±2 | (300×227×270)±2 | (365×227×270)±2 | (430×227×270)±2 |
Weight (KG) | 20±0.2 | 20±0.2 | 22±0.2 | 27±0.2 | 31±0.2 |
Communication methods | UART | UART | UART | UART | UART |
About us
Huachuang Times is an advanced battery technology company in China, focusing on R&D and production in the field of batteries, insisting on taking science and technology as the forerunner, focusing on products and focusing on customers.The company has established a technology center and a post-doctoral scientific research station, and has established a number of new energy research centers in cooperation with national key universities and the Institute of Chinese Academy of Sciences. The scientific research and innovation mechanism is mature and complete. As a company with strong scientific and technological strength in the battery field in China, it will be committed to Users provide power products and services with brand-new technology and experience.Today, the company's products have been sold to more than 60 countries and regions on five continents in the world, fully demonstrating the excellent quality of Chinese products and the strong charm of national enterprises to consumers.
